Introduction: Breaking International Monopolies with Aerospace-Derived Air Bearing Technology
In precision manufacturing pipelines—such as semiconductor photolithography, cleanroom photovoltaics, high-end air separation, and fine chemical processing—stable, high-pressure, and 100% absolutely oil-free compressed air is the critical lifeblood of production. For decades, the high-end air suspension centrifugal blower and high-pressure compressor markets have been heavily dominated by overseas industrial conglomerates from Europe, the US, and Japan.

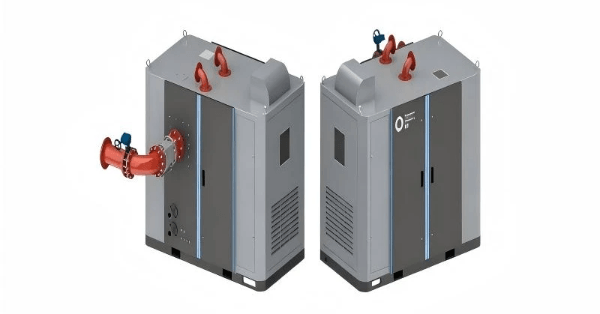

Figure1: C Series Air Bearing High-Speed Centrifugal Compressor
1.1 Aerospace-Grade Technology with High Scarcity
The product lines vertically integrate five foundational technologies: hydrodynamic/hydrostatic gas bearings, high-speed permanent magnet motors, aerospace 3D flow impellers, high-speed variable frequency drives, and intelligent cloud-based control. By scaling down ultra-precise air bearing technologies—traditionally reserved for aerospace microgravity simulation and defense-grade test benches—into commercial industrial units, it introduces a high-barrier, highly scarce asset class to the standard compressor marketplace.
1.2 100% Pure Civilian Use: Zero Export Control and Trade Compliance Risks
While the underlying engineering stems from an elite aerospace engine background (with the team having passed military-grade quality management systems and operating dual-use laboratories), this entire series of compressors and blowers is explicitly classified for commercial, civilian industrial applications. Platforms and buyers can handle procurement, cross-border logistics, and integration without any risk of international export controls, embargoes, or ITAR sanctions, ensuring total supply chain safety.
1.3 Direct Replacement of Foreign Brands with Extreme Cost Efficiency
Jingxiao's technical parameters directly rival or surpass mainstream western brands:
Ultra-High Speed & Efficiency: The permanent magnet synchronous motor clocks a maximum rotational speed of 400,000 rpm, with a motor efficiency ≥97% and a robust design life supporting over 100,000 start-stop cycles without wear.
Aerospace-Grade 3D Flow Impellers: CNC-milled using five-axis high-speed machining centers from high-strength aerospace aluminum. The manufacturing precision is held to the micron level, and the surface is protected by hard-anodizing, ensuring a service life exceeding 20 years.Compared to imported brands, initial procurement expenditures and long-term operating costs are drastically minimized.
Extensive Versatility Across Sectors
Spanning from low-pressure (10 kPa) aeration up to high-pressure (85.6 bar) working conditions, these systems cover almost all critical gas-handling applications across dozens of industrial sectors.

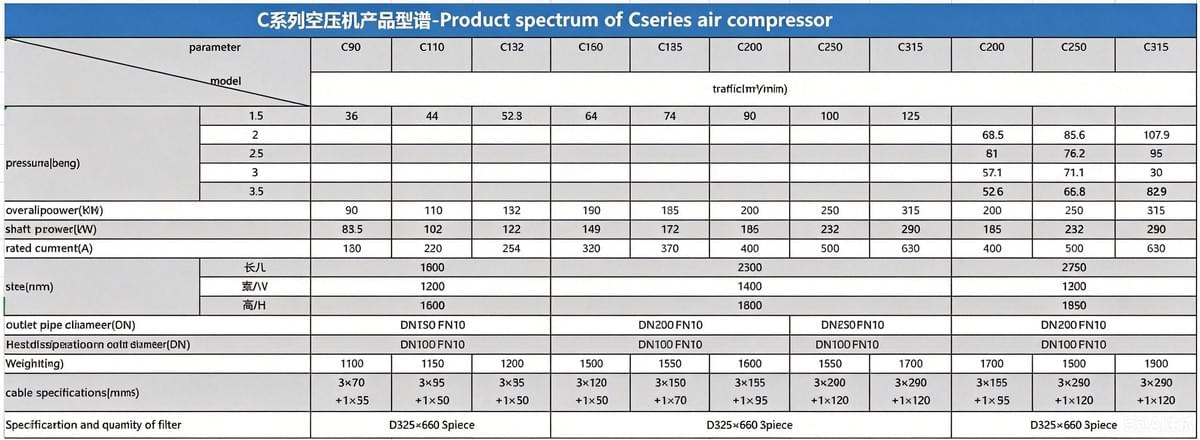

Figure2: C Series Air Compressor Product Range
2. Deep Technical Breakdown: Industrial Pain Points & Scenario Replacements
Traditional industrial air equipment—such as Roots blowers, standard oiled screw compressors, and piston compressors—relies heavily on mechanical contact friction. Over long cycles, this creates three unresolvable bottlenecks: oil contamination risk, extreme power consumption, and frequent maintenance.
By replacing "mechanical friction" with "air suspension/gas films," the Jingxiao Series provides revolutionary substitute solutions across four typical industrial scenarios:

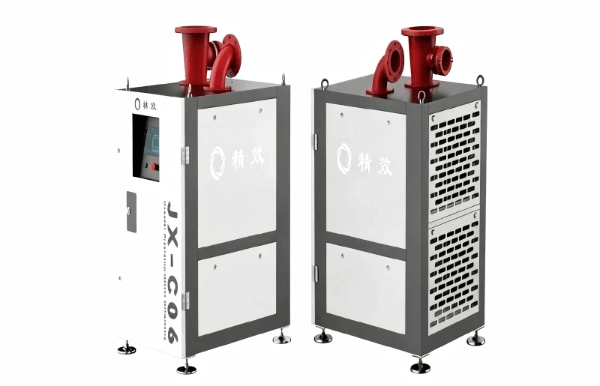

Figure3: JX-C06 Air Bearing High-Speed Centrifugal Compressor
Scenario 1: Semiconductor Lithography, IC Fabrication, and Precision Optics
Traditional Pain Point: Standard compressors require lubricating oils. Even with multi-stage chemical filtration, microscopic oil aerosols can bypass seals, risking irreversible contamination to multi-million dollar photolithography tracks, wafer thinning lines, or optical mirrors.
Jingxiao Replacement Solution: Utilizing hydrodynamic gas bearing technology, the shaft is levitated on a gas film of only a few dozen microns formed by high-speed self-rotation. The entire compression sequence is 100% oil-free and zero-emission, directly generating ultra-clean, aerospace-grade compressed air, eradicating any chemical risk factors from wafer fabrication.
Scenario 2: Pharmaceutical Pneumatic Conveying & Sterile Food Packaging
Traditional Pain Point: Conventional machinery exceeds 100 dB in operating noise and demands recurrent changes of oil, seals, and piston rings, exposing delicate pharmaceuticals and consumer foods to secondary biological and chemical contamination.
Jingxiao Replacement Solution: Thanks to its integrated, ultra-compact architectural layout, the total operating noise is suppressed under 80 dB. Because there is no metal-to-metal mechanical friction, the system is lubricant-free for life, requires zero bearing swaps, and is maintenance-free (requiring only routine swaps of basic intake air filter elements), slicing operational overhead for pharmaceutical plants.
Scenario 3: Bulk Material Chemical Conveying, Mining Flotation & Air Separation
Traditional Pain Point: Standard Roots blowers feature low thermodynamic efficiency. Under strict global "Carbon Peak & Carbon Neutrality" environmental regulations, they face heavy energy-tax penalties and forced phase-outs.
Jingxiao Replacement Solution: Jingxiao's high-speed centrifugal configuration delivers peerless efficiency, slashing power consumption by 20% to 50% compared to traditional Roots blowers. The product line has officially been cataloged in national industrial energy-saving equipment recommendation directories. A single 100 kW scale unit can save businesses tens of thousands of dollars annually in electricit billing.
Scenario 4: Extreme Environment Industrial Purging & New Energy PV Lines
Traditional Pain Point: Under high/low temperatures or heavily dust-laden atmospheres, ordinary screw or piston compressors suffer frequent surge damage or mechanical seizure. Furthermore, real-time telemetry and multi-machine industrial IoT control are extremely difficult to implement.
Figure4: JX Series Air Bearing High-Speed Centrifugal Compressor
Jingxiao Replacement Solution: The onboard variable frequency drive and control system operate seamlessly across a broad temperature array of -20°C to 55°C. The unit embeds a next-generation vector inverter system, unifying anti-surge automated protection, motor thermal protection, and local continuous adjustment. Fully supporting remote networked data streaming, procurement engineers and plant operators can execute predictive maintenance via PC, mobile app, or cloud-based analytical dashboards.
Conclusion:
Empowering High-Tech Supply Chains with Aerospace Quality
As a crown jewel of industrial fluid machinery, the Jingxiao Air Bearing High-Speed Centrifugal Series inherits the elite engineering genetics of aerospace propulsion design while delivering an unrestricted, commercialized, and cost-effective product line for the global market.
Integrating this hardware lineup onto your Aerospace and Electronic Components Supply Chain E-Commerce Platform offers an optimized procurement pathway for high-precision manufacturers, air-separation plant integrators, and clean-tech engineers looking to secure an uncompromised, ITAR-free, 100% oil-free industrial air solution.
(Technical values and operating specifications contained in this report are verified by product brochures and hardware datasheets. Engineering CAD models, custom impeller profiling, and volume procurement schedules are available by contacting our online platform helpdesk.)
